Sacred Water for a Sovereign Future
Vai Tapu
“Sacred Water”
Decentralized, flood-resilient desalination for island sovereignty.
Overview
The Vai Tapu Modular Desalination and Brine Recovery System is purpose-built to serve the urgent needs of remote island communities that face chronic challenges such as limited freshwater availability, lack of resilient infrastructure, and shortages of trained personnel.

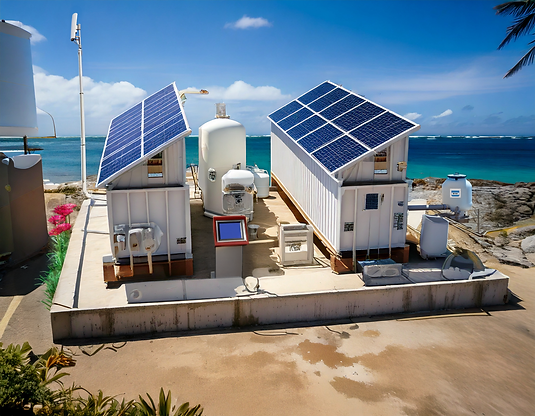

At the heart of the system is a solar-powered reverse osmosis (RO) desalination unit, designed for modular deployment and complete off-grid operation. This unit produces up to 20,000 liters of potable water per day and is supported by an integrated Advanced brine recovery module that increases total water recovery to as high as 90%. In addition, the system includes rainwater harvesting via canopy-integrated gutters and optional storage tanks, which serve as both a supplemental water source and a mechanism for brine dilution prior to ecological discharge or salt recovery.
Guardian and Arbor Integration
The Vai Tapu system is enhanced by the Guardian–Arbor infrastructure, which brings intelligent oversight, civic accountability, and hands-free operability to remote communities.
-
Guardian acts as the central logic and control system. It monitors every key parameter in real time—including salinity, flow rate, pressure, tank levels, solar input, and battery status—and executes automated control protocols such as membrane flushing, power throttling, and brine discharge routing. Guardian also manages data logging, alert generation, and adaptive logic, adjusting system behavior based on environmental conditions, water usage trends, or equipment health.
-
Arbor serves as the human-facing interface, designed to assist local stewards and citizens with intuitive guidance. Through a conversational UI available on touchscreen terminals or mobile devices, Arbor translates Guardian insights into clear, actionable tasks. It can notify stewards of maintenance needs, explain system behavior, deliver training instructions, and guide manual override operations. In ritual contexts, Arbor also serves a ceremonial role—supporting cultural practices like water drawdowns, harvest blessings, or system activation events.
Together, Guardian and Arbor ensure that the Vai Tapu system remains resilient, autonomous, and accountable, even in environments where technical personnel are limited. The integration of manual overrides, visible civic dashboards, and offline-first operation further supports the system’s core mission: delivering reliable, renewable water independence while maintaining cultural dignity and ecological stewardship
System Highlights Per Node
Production Capacity
20,000 L/day
Battery Buffer
Modular 7.5–15 kWh LiFePO₄ energy buffer
Monitoring
AI-integrated system panel with full Guardian linkage
Power Source
6.4 kW solar canopy (16 × 400W panels)
RO Core
Compact reverse osmosis system (seawater-grade)
Enclosure
FRP housing with storm tie-downs
Water Flow Summary
Flow Stage | Volume Estimate (L/day) | Notes |
|---|---|---|
🌊 Seawater Intake | 22,000–24,000 | Maximum input for full RO + brine recovery operation |
💧 Freshwater via RO | ~10,000–12,000 | Primary recovery (45–50%) |
💧➕ Freshwater via Brine Recovery Unit | ~9,000–10,000 | Secondary recovery from brine (adds ~40% recovery) |
🚰 Total Freshwater Output | ~19,000–22,000 | Combined fresh water from both stages |
♨️ Final Brine (Concentrated) | ~2,000–3,000 | Sent to safe-use or discharge zones |
🌧️ Rainwater Used | 200–1,000+ (variable) | For brine dilution, flush cycles, and ritual fill |
🧂🌱 Discharge Pathways | N/A (volume varies) | Salt basins, halophyte plots, Coral Cradles, or safe outflow |
How Vai Tapu Works
Modular Desalination + Civic Stewardship
Vai Tapu is Tuvalu’s flagship modular desalination unit—housed in a storm-ready container, powered by solar energy, and monitored by Guardian AI. Each unit transforms seawater into clean drinking water, creating local resilience in the face of rising seas and drought.
Step 1. Seawater Intake
-
Seawater is pulled from a lagoon or well intake.
-
A coarse screen filter removes sand, shells, and marine debris.
Step 4: Desalination
-
Inside the membranes, freshwater passes through, while salt and contaminants are rejected.
-
The result is:
-
Permeate (Fresh Water): ~20,000 L/day
-
Brine (Concentrated Saltwater): ~20,000–25,000 L/day (depending on salinity)
-
Step 2. Pre-Treatment
-
The water passes through a 5-micron cartridge filter to remove fine particles.
-
Optional UV light and anticalin injection protect the membranes from fouling.
Step 5: Post-Treatment
-
Freshwater is remineralized for taste and pH balance.
-
It is stored in a 2,000–3,000 L clean water tank or piped to a Vai Koko cocoon tank.
Step 3. Reverse Osmosis Pump
-
A Danfoss APP high-efficiency pump pressurizes the water to ~800 psi.
-
The pressurized water enters the RO membrane array.
6. Brine Handling
-
Brine from the RO process is collected in an 800–1,200 L buffer tank.
-
This tank also receives rainwater dilution to reduce salinity before pumping.
Brine Recovery: Closing the Water Loop
The Vai Tapu modular desalination system is designed not just to create fresh water, but to do so with ecological dignity. After seawater is processed through the primary reverse osmosis system, the remaining brine—normally a waste product—is sent into a specialized recovery process using the Brine Recovery unit. This extends water yield, reduces discharge impacts, and transforms waste into opportunity.
Advanced Recovery
This brine is then processed through the Brine Recovery unit—a high-pressure membrane system designed to extract even more freshwater from the waste stream.
-
Recovery increases from ~50% to up to 90% of input water.
-
Energy use is low to moderate: ~1.5–3.5 kWh/m³, compatible with Vai Tapu’s solar and battery capacity
How the Brine Recovery Unit Works
Step 7: Brine Pump to Recovery Unit
-
Brine is pumped at high pressure (up to 1,200 psi) into the Brine Recovery Unit system.
Step 9: Output Split
The system creates:
-
Recovered Permeate: This water is clean and added to the freshwater tank.
-
Ultra-Concentrated Brine: Sent to the next phase: reuse or safe discharge
Step 8: Second Pass Filtration (Phase 1)
-
This brine is then processed through the Brine Recovery unit—a high-pressure membrane system designed to extract even more freshwater from the waste stream.
-
Recovery increases from ~50% to up to 90% of input water.
-
Guardian tracks flow rate, pressure, and salinity to prevent overload.
Step 10: Discharge or Reuse
Brine is:
-
Routed to halophyte beds
-
Fed into solar salt basins
-
Diluted further and released with Guardian-controlled monitoring
Future-Ready (Phase 2)
Once Tuvalu’s energy infrastructure expands—especially with the Micro Modular Reactor (MMR) or large-scale battery storage online—Vai Tapu will activate its Phase 2 brine management: the Advanced Brine Recovery system. This will enable full Zero Liquid Discharge (ZLD), turning the last drops of brine into usable salt, minerals, and distilled water—with no liquid waste discharged to the sea.
Energy Comparison: Primary Desalination & Brine Recovery
Component | Core RO | Brine Recovery |
|---|---|---|
Purpose | Converts seawater to fresh water | Extracts more water from RO brine |
Recovery Rate | ~45–50% | Raises total recovery up to ~90% |
Energy Use per m³ (avg.) | ~3.5–5.0 kWh | ~6.0 kWh |
Operating Pressure | Up to 800 psi | Up to 1,200 psi |
Power Draw (est.) | ~2.5–4 kW | ~4–6 kW |
Feed Water TDS Range | Up to 40,000 ppm | 40,000–80,000+ ppm |
Primary Power Source | Solar + battery | Shared solar + battery (or dedicated) |
Compatibility with Vai Tapu | Core system | Add-on module (Phase 1 or 2) |
Deployment Fit | Daily use | Intermittent or scheduled use |
System Capabilities
Pre-Treatment Filters
The heart of Vai Tapu’s fresh water generation
Before seawater reaches the reverse osmosis (RO) membranes, it must pass through a robust pre-treatment system designed to remove sediment, biological material, and suspended solids that would otherwise foul or damage the RO unit.
Key Features:
-
Self-Cleaning Intake Screen:
Positioned at the seawater intake, this stainless steel mesh filter automatically excludes large particles and debris like sand, leaves, and marine organisms.
-
5-Micron Cartridge Filter:
Housed in a modular, easily replaceable unit, this filter captures fine suspended particles down to 5 microns, protecting the RO membrane from clogging and abrasion.
-
Optional Carbon Filter Stage:
In deployments with higher organic matter or turbidity, an activated carbon filter can be added to absorb dissolved contaminants and reduce odor or taste impurities.
-
Guardian-Linked Pressure Sensors:
Real-time monitoring detects pressure drops indicating clogging or biofilm buildup, prompting alerts to operators via Arbor.
Why It Matters:
Effective pre-treatment extends the lifespan of the RO membrane, improves energy efficiency, and ensures consistent water quality. This protective system is essential for reliable long-term operation, especially in island environments with variable water conditions.
Why We Harvest the Brine – And Why No One Else Does
In most desalination systems across the globe, the salt-laden brine produced during freshwater extraction is treated as a waste product—something to be diluted and discharged, hidden from view. But in Tuvalu, we choose differently.
Our Vai Tapu modular water system doesn’t just make clean water. It recovers value from what others discard.
We harvest magnesium hydroxide (Mg(OH)₂) from desalination brine because we believe that circular infrastructure is the only path forward for island survival, climate justice, and post-colonial dignity.
So why don’t others do this?
Engineering Simplicity > Circular Complexity
Most systems are designed to maximize output and minimize parts. Adding harvesting tanks, settling processes, and solid handling introduces “inconvenient complexity”—so it’s skipped.
Margins Rule
Magnesium isn’t profitable at small scale—yet. Commercial systems chase efficiency and margin. Regenerative thinking doesn’t show up on balance sheets.
Linear Thinking is Easier
Traditional infrastructure is built as a one-way street: input → output → disposal. But we ask: What can we re-use? What can we return to the earth? What can teach dignity through ritual?
No Intelligence, No Insight
Without smart monitoring like the Guardian Node, there’s no way to know when to harvest, or what you’re recovering. We change that by integrating data, culture, and automation.
Tuvalu chooses to harvest magnesium—not for money, but for meaning. It becomes coral-safe concrete. Soil stabilizer. Flame retardant. And a symbolic material of sovereignty and survival.
Our brine is not a waste product. It is a story—waiting to be told, reclaimed, and rebuilt.
This is why we harvest the brine. And why no one else does.
Why It Matters
♻️
Nothing Is Wasted
Every part of the water cycle becomes a resource—salt, minerals, even brine—looped back into civic, agricultural, or ritual life.
🏛️
Civic Value Creation
Recovered magnesium and salt can be stored, traded, or used in rituals, infrastructure, or public health—building resilience and reciprocity.
🪸
Ecological Regeneration
Instead of harming marine life, brine nourishes—feeding halophyte crops, coral nursery zones, and even Reefskin cradles to help the reef recover.
🛡️
Water Sovereignty
Brine is not a burden—it is a strategic asset. When managed with care, it becomes a symbol of strength, not pollution.
Justifying the Cost
A Resilient Water Node for a Sovereign Future
The Vai Tapu + Brine Recovery system is not just a water treatment device—it is a future-proof lifeline built for island nations navigating climate collapse, energy transition, and cultural survival. Every dollar invested builds not only capacity, but continuity.
Exceptional Water Recovery with Minimal Waste
-
Standard systems recover just 40–50% of seawater—half is wasted as brine.
-
Vai Tapu + Brine Recovery unit recovers up to 90% of input water, doubling output without doubling energy use.
-
This advanced two-stage recovery reduces the number of required tanks, offloads pressure on storage infrastructure, and generates more freshwater with fewer ecological consequences.
Outcome: 19,000–22,000 liters/day of potable water, from just 22,000–24,000 liters of seawater intake.
Guardian-Enabled Visibility, Ritual, and Trust
-
Guardian AI provides real-time system health, water availability updates, and predictive maintenance alerts.
-
Community stewards and citizens view water status through civic dashboards and Arbor interfaces, reinforcing transparency.
-
Integration with Vai Mana fountains, Vai Koko storage tanks, and ritual drawdown ceremonies ties technology to daily life and cultural meaning.
Outcome: A water system that’s understood, respected, and integrated—not just operated.
Energy Independence = Operational Freedom
-
Powered by a 6.4 kW solar array and 14 kWh lithium battery bank.
-
Fully autonomous—no diesel, no utility bills, no fuel shipments.
-
Integrates with Guardian’s Energy Priority Protocol, allowing critical water services to remain operational during grid failure or storms.
Outcome: Saves thousands per year in diesel fuel and avoids carbon emissions over the system’s 15–20 year lifespan.
Return on Investment
(ROI)
Over a 15-year life:
-
Saves ~$10,000–15,000/year in fuel, logistics, and maintenance vs. diesel-based systems.
-
Avoids emergency water imports during drought or grid failure.
-
Enables community trust and global visibility as a model of climate-resilient, ethical infrastructure.
Built for Islands, Not Just Industry
-
Based on the main RO Unit, a modular system rated for coastal and marine deployments.
-
Installed in a storm-rated ISO container with salt-resistant fittings, passive/active cooling, and low-maintenance access points.
-
Brine is never dumped carelessly: diluted with rainwater, routed to salt basins, or used in halophyte farming and Coral Cradle habitats.
Outcome: Long system life, minimal environmental impact, and compatibility with Tuvalu’s ecological and cultural context.
Final Word: A Sacred Investment in the Future
Vai Tapu is not just a desalination unit—it is a modular water sovereignty node.
It provides clean water, yes—but it also offers energy independence, civic pride, and a visible symbol of continuity.
“Vai Tapu gives us more than water. It gives us time, trust, and the tools to survive as a people.”
